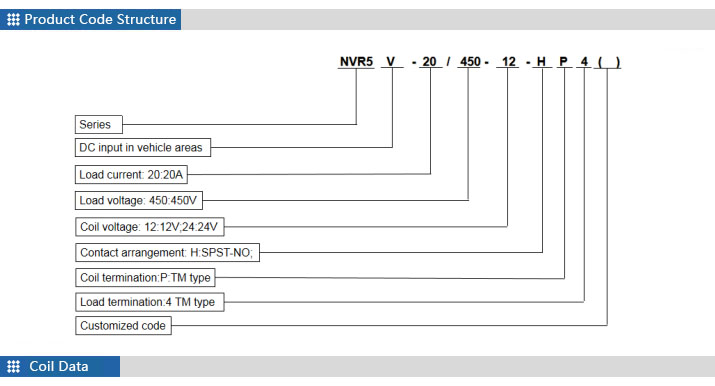

NVR5V-20 download

1. RoHS compliant；
2. Magnet arc blowout;
3. Up to 450VDC Cutoff;
4. Compact and lightweight;
5. Polarity free coil circuit

1. Main contactors for HEV,PHEV and BEV；
2. Battery charging systems；
3. Power charging devices；
4. Solar power systems;

Rated voltage	Operate voltage	Release voltage	Rated operating power
VDC	VDC	VDC	W
12	≤8.4	≥1	2.5~3.5W
24	≤16.8	≥2
48	≤36	≥4
60	≤45	≥5

1) Operate voltage and release voltage may vary with environmental temperature.
2) The ripple factor should be under 5%.

Contact arrangement		1H
Initial contact resistance		≤10mΩ(20A)
Rated current		20A
		60V Type	450V Type
Max. Switch voltage		72V	450V
Max. Switch current		30A	35A
Max. Switch power		1.44kW	9kW
Limiting short-time current		40A:20min
		80A:30s
		120A:10s
Dielectric strength	Between contact and coil	3000V AC/1min
	Between contacts	2000V AC/1min
Insulation resistance	Between contact and coil	Min：1000MΩ（1kV DC）
	Between contacts
Operate time		≤30ms
Release time		≤10ms

Endurance	Mechanical	3×105 times
	Electrical	60V Type	Switch-off:1×10⁵times@20A,72V
	（Resistive load）	450V Type	Switch-off:1×10⁴times@20A
			Switch-off:5×10⁴times@10A
			Switch-on:1×10⁵times@20A
Mechanical performance	Shock resistance (Functional)	20G
	Shock resistance (Destructive)	50G
	Vibration resistance (Functional)	5G(10～500Hz)
	Vibration resistance (Destructive)	5G(10～500Hz)
Operational condition	Ambient temperature	-40℃～+85℃
	Relative humidity	20%～90% R.H.
Weight		Approx.50g

1. Please use relays in the conditions described in the specification. Otherwise product performance will not be guaranteed.
2. Please add surge protection in parallel if an inductive load (L/R＞1ms）is applied.
3. If the relay operates on no load condition,the contact resistance may increase.
4. Please connect the terminals correctly.Any wrong connection may cause circuit damage such as malfunction,overheat,and fire.
5. Screwing-tightening condition: M3 Screw:0.8Nm~1.3Nm（Tightening torque for fixing relay body).
6. Use the suitable wires or busbars according to the current.Carrying current:20Amps:diameter of 4mm² (min.).
7. Standard operation condition:temperature -40℃~85℃, humidity 20%~90%R.H..
8. If the relay is dropped,it should not be used again.
（Please do not determine specifications based on this document.Contact our sales staff for more information and supports.)
