1. Main contactors for HEV,PHEV and BEV；
2. Battery charging systems；
3. Power charging devices；
4. Solar power systems;

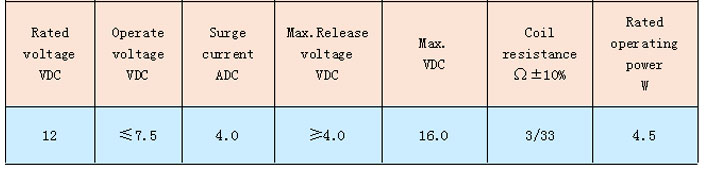

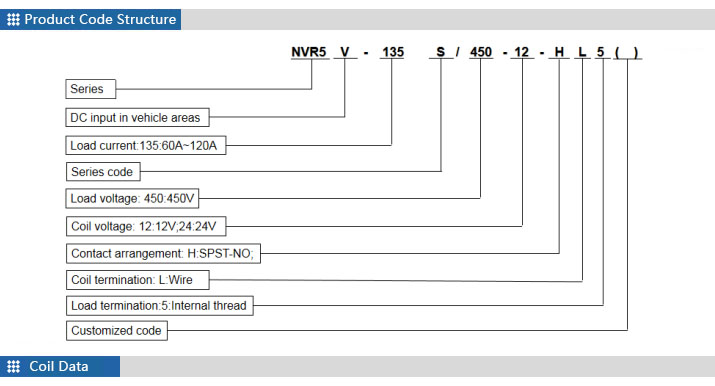

Parameters for external economization with PWM.


1) Operate voltage and release voltage may vary with environmental temperature.
2) The ripple factor should be under 5%.

Contact arrangement		1H
Initial contact resistance		≤3mΩ(20A)
Rated current		60～120A
Max. switch voltage		500V
Limiting short-time current		500A:30s
		1500A:2s
Dielectric strength	Between contact and coil	2800VDC,3mA
	Between contacts
Insulation resistance	Between contact and coil	Min：1000MΩ（1kV DC）
	Between contacts
Operate time		≤30ms
Release time		≤10ms

Endurance	Mechanical		2×105 times
	Electrical	ON:210A (24VDC)	1×105 Times
	（Resistive load）	OFF:10A(24VDC)
		ON:210A (24VDC)	10 Times
		OFF:500A(450VDC)
Mechanical performance	Shock resistance (Functional)		20G
	Shock resistance (Destructive)		50G
	Vibration resistance (Functional)		10G(10～500Hz)
	Vibration resistance (Destructive)		10G(10～500Hz)
Operational condition	Ambient temperature		-40℃～+85℃
	Relative humidity		5%～85% R.H.
Weight			Approx.295g

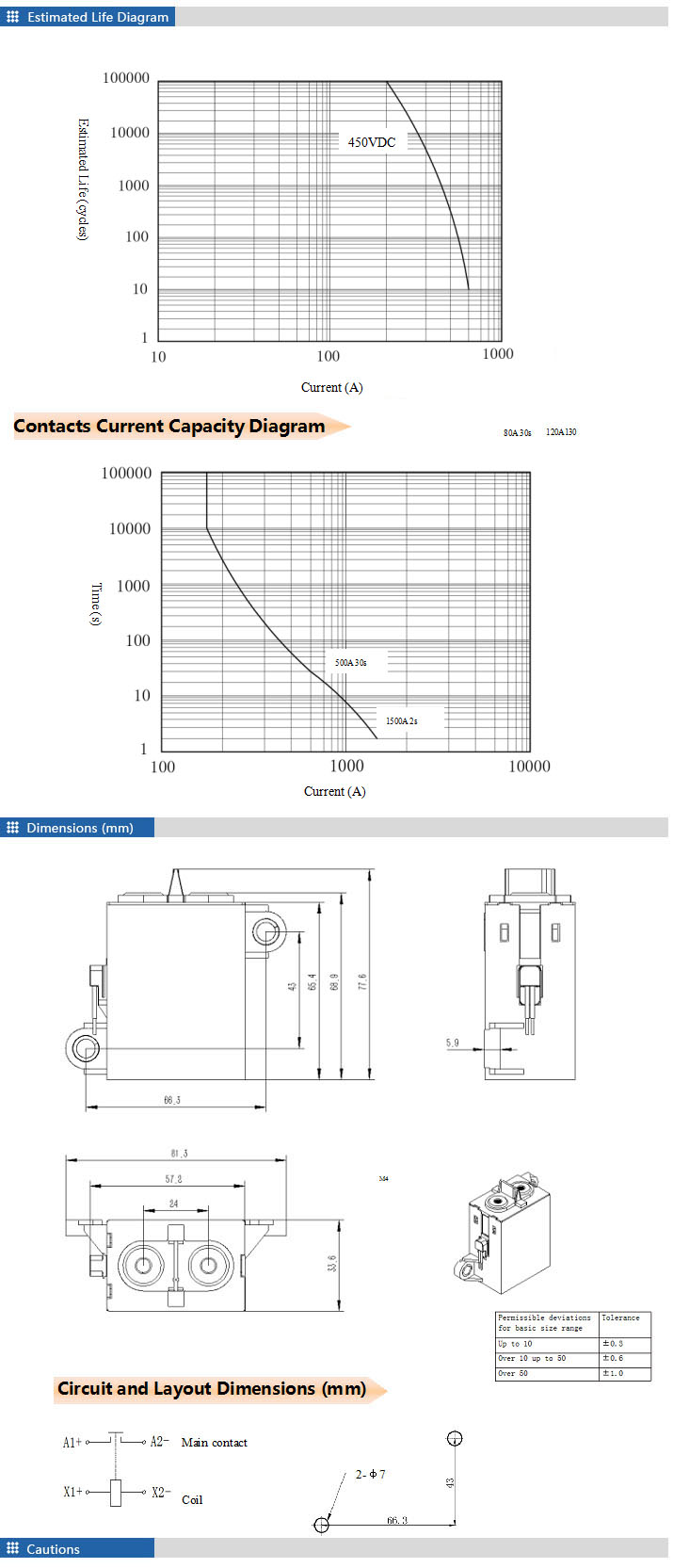

1. Please use relays in the conditions described in the specification. Otherwise product performance will not be guaranteed.
2. Please add surge protection in parallel if an inductive load (L/R＞1ms）is applied.
3. If the relay operates on no load condition,the contact resistance may increase.
4. Please connect the terminals correctly.Any wrong connection may cause circuit damage such as malfunction,overheat,and fire.
5. Max. Tightening torque:5N
6. Use the suitable wires or busbars according to the current.
7. Standard operation condition:temperature -40℃~85℃, humidity 5%~85%R.H.,altitude:≤5500m.
8. If the relay is dropped,it should not be used again.
（Please do not determine specifications based on this document.Contact our sales staff for more information and supports.)
