1. RoHS compliant；
2. Contacts sealed in ceramic capsules and inert gas；
3. Contacts protected against contamination. e.g oxidation and corrosion;
4. Magnet arc blowout;
5. Up to 900VDC Cutoff;
6. Compact and lightweight;
7. No polarity on terminals and connectors;
1. Main contactors for larger hybrid electric vehicles(HEV),plug-in hybrids(PHEV)and full electric vehicles(BEV)；
2. Battery charging systems；
3. Power charging devices；
4. Solar power systems;
5. Could server and uninterrupted power supply(UPS)
|

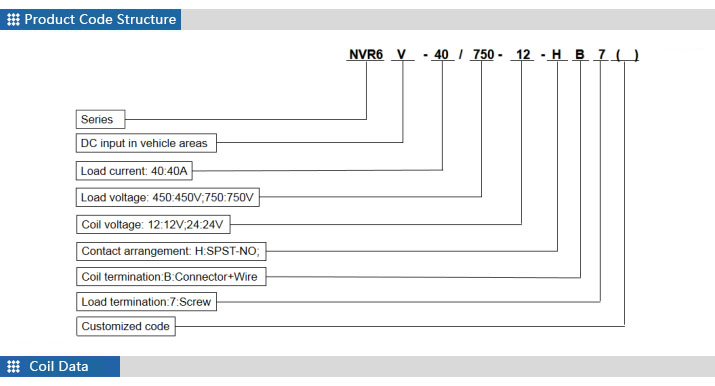

Rated voltage |
Operate voltage |
Release voltage |
Rated operating power |
|
VDC |
VDC |
VDC |
W |
|
12 |
≤8.4 |
≥1 |
3 |
|
24 |
≤16.8 |
≥2 |
3 |
1) Operate voltage and release voltage may vary with environmental temperature.
2) The ripple factor should be under 5%.
|
Contact arrangement |
1H |
|
Initial contact resistance |
≤5mΩ(6V DC/20A) |
|
Rated current |
40A |
|
Limiting short-time current |
80A:10min |
|
160A:10s |
|
Max.switching current |
400A(320V DC) |
|
Overload break |
100 times（80A/450V DC） |
|
Dielectric strength |
Between contact and coil |
3000V AC |
|
Between contacts |
|
Insulation resistance |
Between contact and coil |
Min：1000MΩ（1kV DC） |
|
Between contacts |
|
Operate time |
≤30ms |
|
Bounce time |
＜5ms |
|
Release time |
≤10ms |
|
Endurance |
Mechanical |
2×105 times |
|
Electrical |
450V DC |
Switch-off:3×104 times |
|
（Resistive load） |
Switch-on:1×105 times |
|
|
750V DC |
Switch-off:3×103 times |
|
|
Switch-on:7.5×104 times |
|
Mechanical performance |
Shock resistance (Functional) |
20G |
|
Shock resistance (Destructive) |
50G |
|
Vibration resistance (Functional) |
4G(10～500Hz) |
|
Vibration resistance (Destructive) |
4G(10～500Hz) |
|
Operational condition |
Ambient temperature |
-40℃～+85℃ |
|
Relative humidity |
5%～85% R.H. |
|
Weight |
Approx. 160g |

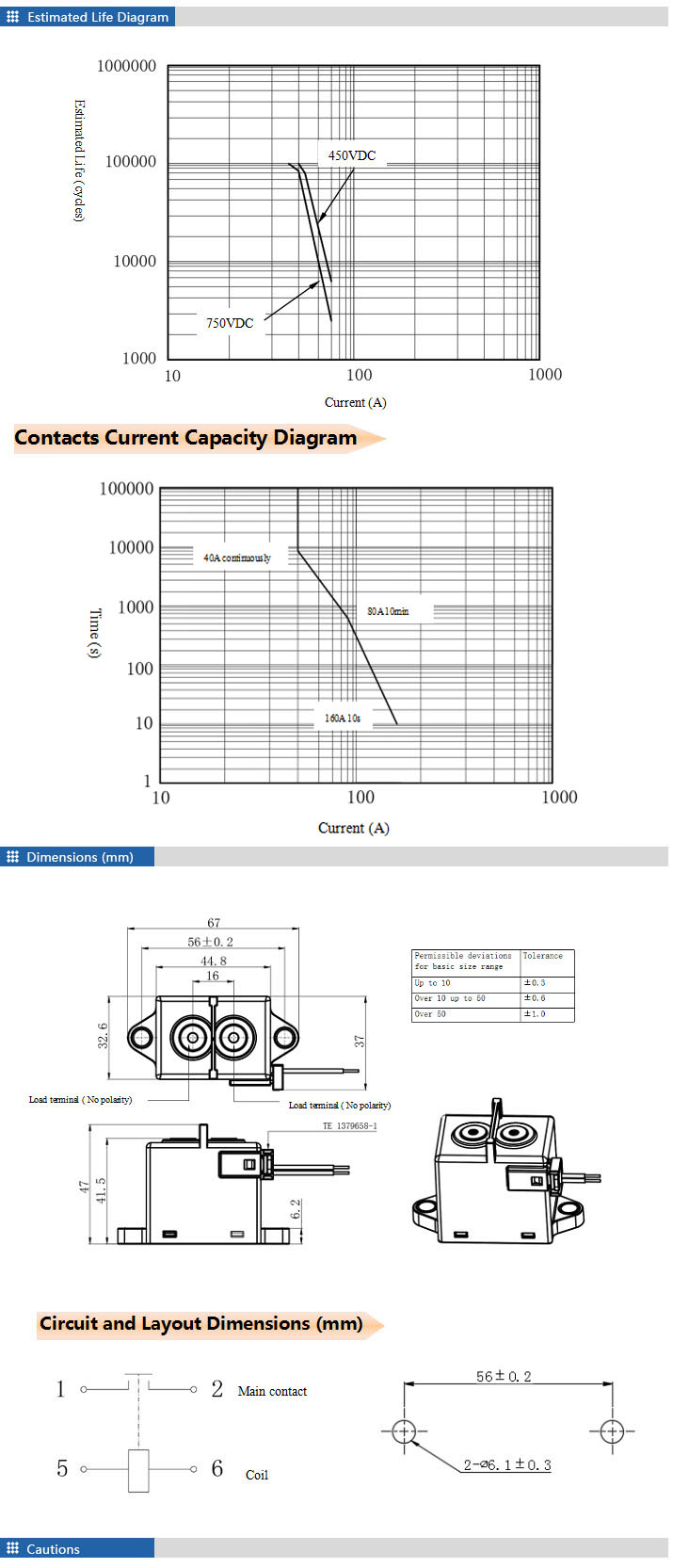

1. Please use relays in the conditions described in the specification. Otherwise product performance will not be guaranteed.
2. Please add surge protection in parallel if an inductive load (L/R＞1ms）is applied.
3. Contact resistance may increases if a relay is operating without a load.
4. Please connect the terminals correctly.Any wrong connection may cause circuit damage such as malfunction,overheat,and fire.
5. Screwing-tightening condition:A) M4 Screw:1.8Nm~2.7Nm（Tightening torque for fixing relay body）B) M5 Screw:3Nm~4Nm（Tightening torque for contact terminal）
6. Use the suitable wires or busbars according to the current.Carrying current:40Amps:diameter of 10mm
2 (min.).
7. Standard operation condition:temperature-40℃~85℃,humidity5%~85%R.H..
8. If the relay is dropped,it should not be used again.
（Please do not determine specifications based on this document.Contact our sales staff for more information and supports.)
