NVR6V-200Y-F download
1. CCCCE and RoHS compliant；
2. Contacts sealed in ceramic capsules and inert gas；
3. Contacts protected against contamination. e.g oxidation and corrosion;
4. Magnet arc blowout;
5. Coils controlled by PWM (Pulse Width Modulation) to ensure low operation power；
6. Auxiliary contact option;
1. Main contactors for larger hybrid electric vehicles(HEV),plug-in hybrids(PHEV)and full electric vehicles(BEV)；
2. Battery charging systems；
3. Power charging devices；
4. Solar power systems;
5. Could server and uninterrupted power supply(UPS)
|

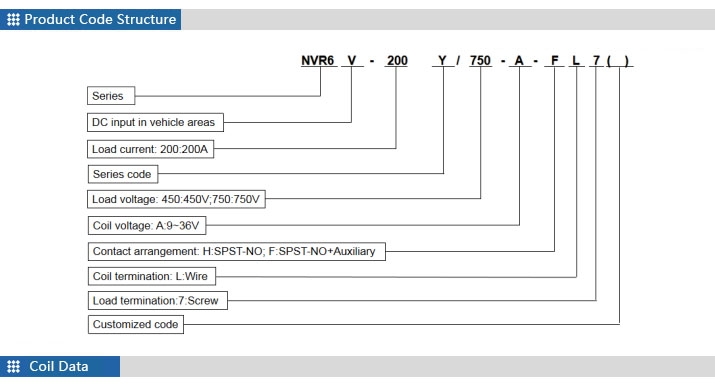

Rated voltage |
Operate voltage |
Release voltage |
Rated operating power |
|
VDC |
VDC |
VDC |
W |
|
9～36V |
≤9 |
≥3 |
|
|
45W(Initial) |
|
4.0W(Holding) |
1) Operate voltage and release voltage may vary with environmental temperature.
2) The ripple factor should be under 5%.
|
Contact arrangement |
1H |
|
Initial contact resistance |
≤1.5mΩ(6V DC/20A) |
|
Rated current |
200A |
|
Limiting short-time current |
400A:10min |
|
800A:10s |
|
Max.switching current |
1600A(320V DC) |
|
Overload break |
50 times（400A/450V DC） |
|
Dielectric strength |
Between contact and coil |
3000V AC |
|
Between contacts |
|
Insulation resistance |
Between contact and coil |
Min：1000MΩ（1kV DC） |
|
Between contacts |
|
Operate time |
≤40ms |
|
Bounce time |
＜5ms |
|
Release time |
≤25ms |
|
Contact arrangement |
SPST-NO |
|
Min.load |
DC5V 100mA |
|
Insulation resistance |
＞100MΩ |
|
Initial contact resistance |
＜30MΩ |
|
Endurance |
Mechanical |
1×106 times（60 times/min.） |
|
Electrical |
3×104 times（30 times/min.） |
|
Endurance |
Mechanical |
2×105 times |
|
Electrical |
450V DC |
1×104 times |
|
（Resistive load） |
750V DC |
6×103 times |
|
Mechanical performance |
Shock resistance (Functional) |
20G |
|
Shock resistance (Destructive) |
50G |
|
Vibration resistance (Functional) |
20G(80～2000Hz) |
|
Vibration resistance (Destructive) |
20G(80～2000Hz) |
|
Operational condition |
Ambient temperature |
-40℃～+85℃ |
|
Relative humidity |
5%～85% R.H. |
|
Weight |
Approx. 460g |

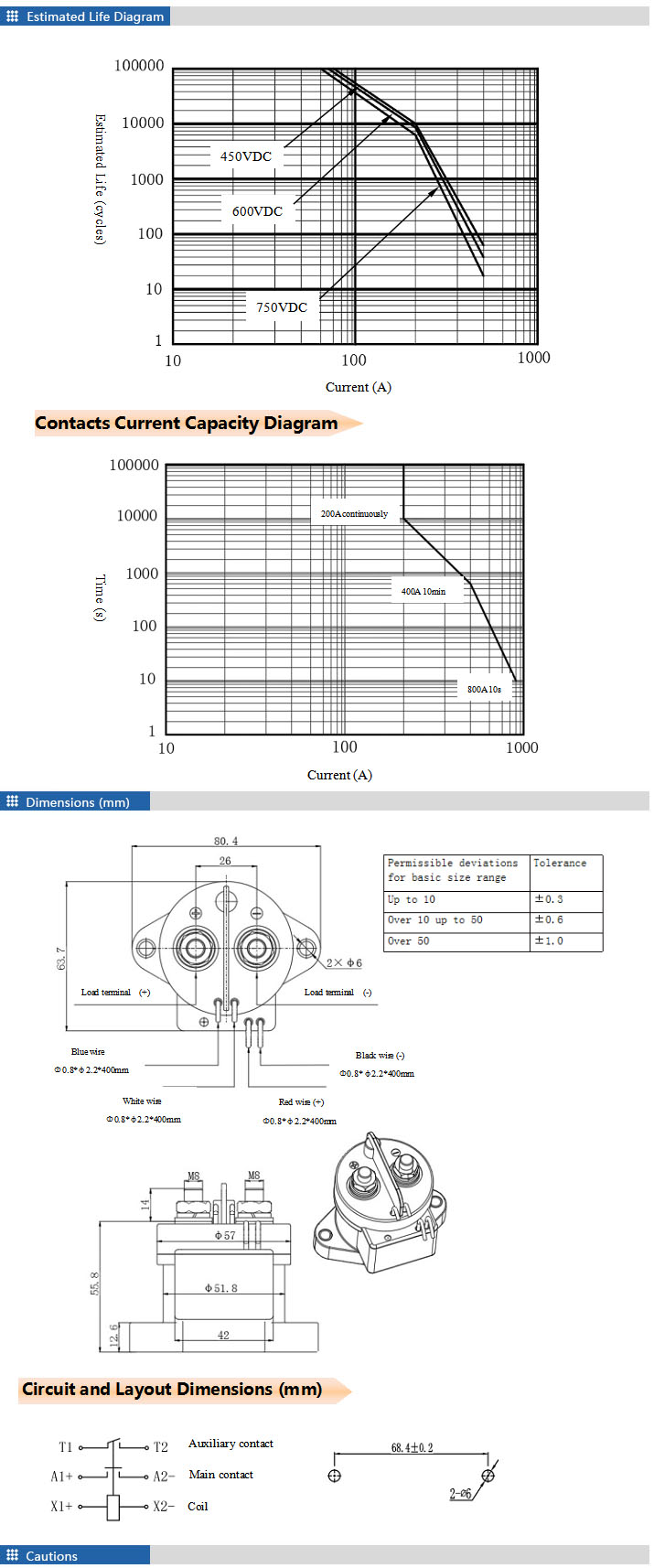

1. Please use relays in the conditions described in the specification. Otherwise product performance will not be guaranteed.
2. Please add surge protection in parallel if an inductive load (L/R＞1ms）is applied.
3. Contact resistance may increases if a relay is operating without a load.
4. Please connect the terminals correctly.Any wrong connection may cause circuit damage such as malfunction,overheat,and fire.
5. Screwing-tightening condition：A) M5 Screw:3Nm~4Nm（Tightening torque for fixing relay body）B) M8 Screw:10Nm~12Nm（Tightening torque for contact terminal）
6. Use the suitable wires or busbars according to the current.Carrying current:200Amps:diameter of 95mm
2 (min.).
7. Standard operation condition:temperature-40℃~85℃,humidity5%~85%R.H..
8. Correct installation of the connector:the coil circuit is polarized.
9. If the relay is dropped,it should not be used again.
（Please do not determine specifications based on this document.Contact our sales staff for more information and supports.)
