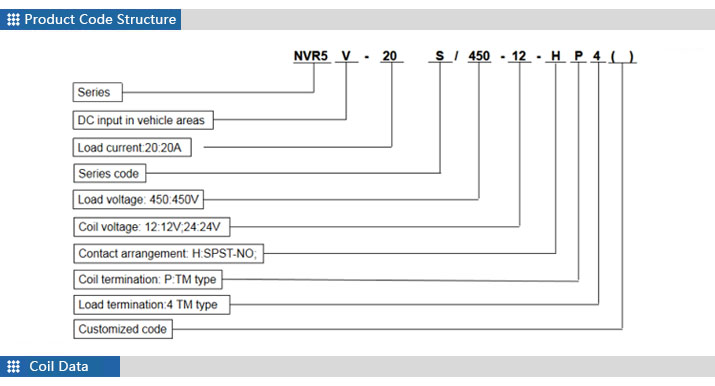

NVR5V-20S download
1. RoHS compliant；
2. Magnet arc blowout;
3. Up to 450VDC Cutoff;
4. Compact and lightweight;
5. Polarity free coil circuit
1. Main contactors for HEV,PHEV and BEV；
2. Battery charging systems；
3. Power charging devices；
4. Solar power systems;
|
Rated voltage |
Operate voltage |
Release voltage |
Rated operating power |
|
VDC |
VDC |
VDC |
W |
|
12 |
≤9 |
≥1 |
3 |
|
24 |
≤18 |
≥2 |
1) Operate voltage and release voltage may vary with environmental temperature.
2) The ripple factor should be under 5%.
|
Contact arrangement |
1H |
|
Initial contact resistance |
≤10mΩ(20A) |
|
Rated current |
20A |
|
Max. Switch voltage |
450V |
|
Max. Switch current |
35A |
|
Max. Switch power |
9kW |
|

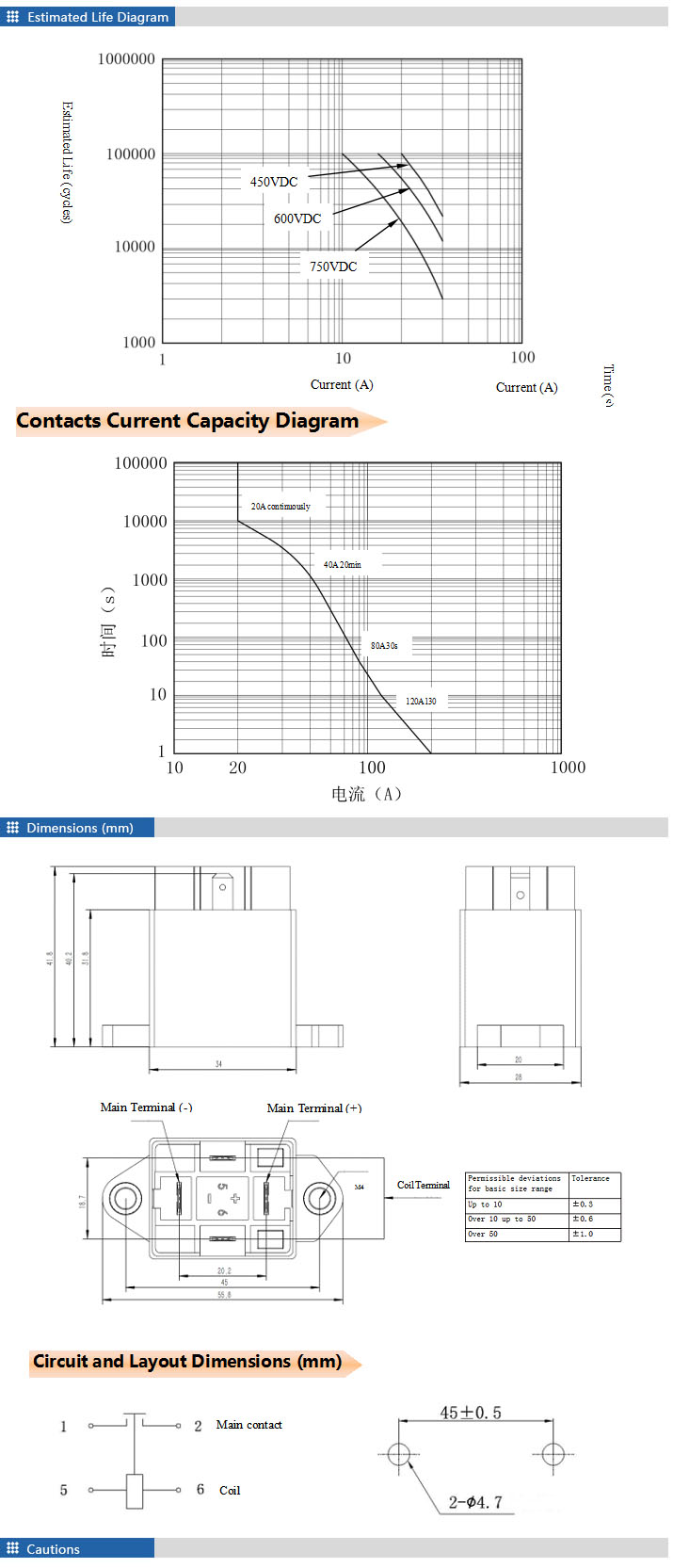

Limiting short-time current |
40A:20min |
|
80A:30s |
|
120A:10s |
|
Dielectric strength |
Between contact and coil |
3000V AC/1min |
|
Between contacts |
2000V AC/1min |
|
Insulation resistance |
Between contact and coil |
Min：1000MΩ（1kV DC） |
|
Between contacts |
|
Operate time |
≤30ms |
|
Release time |
≤10ms |
|
Bounce time |
≤5ms |
|
Endurance |
Mechanical |
2×105 times |
|
Electrical |
Switch-off:3×103times@20A |
|
（Resistive load） |
Switch-off:3×104times@10A |
|
|
Switch-on:7.5×104times@20A |
|
Mechanical performance |
Shock resistance (Functional) |
20G |
|
Shock resistance (Destructive) |
50G |
|
Vibration resistance (Functional) |
4G(10～500Hz) |
|
Vibration resistance (Destructive) |
4G(10～500Hz) |
|
Operational condition |
Ambient temperature |
-40℃～+85℃ |
|
Relative humidity |
5%～85% R.H. |
|
Weight |
Approx.55g |
1. Please use relays in the conditions described in the specification. Otherwise product performance will not be guaranteed.
2. Please add surge protection in parallel if an inductive load (L/R＞1ms）is applied.
3. If the relay operates on no load condition,the contact resistance may increase.
4. Please connect the terminals correctly.Any wrong connection may cause circuit damage such as malfunction,overheat,and fire.
5. Screwing-tightening condition: M3 Screw:0.8Nm~1.3Nm（Tightening torque for fixing relay body).
6. Use the suitable wires or busbars according to the current.Carrying current:20Amps:diameter of 4mm
2 (min.).
7. Standard operation condition:temperature -40℃~85℃, humidity 5%~85%R.H..
8. If the relay is dropped,it should not be used again.
（Please do not determine specifications based on this document.Contact our sales staff for more information and supports.)
