HVDC Relay - Cylinder Series

主页 > ENGLISH > PRODUCTS > HVDC Relay - Cylinder Series >

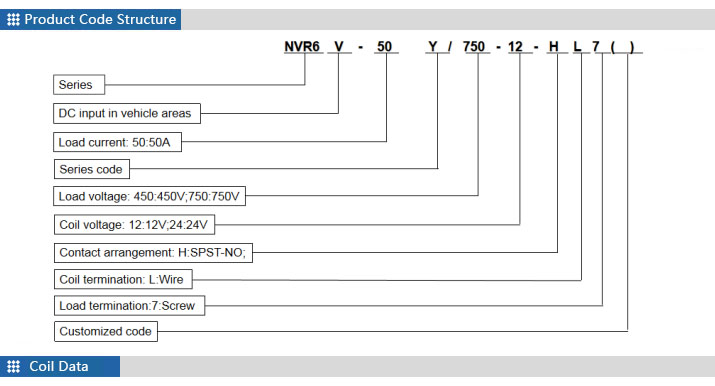

NVR6V-50Y download

1. CCC and RoHS compliant；
2. Contacts sealed in ceramic capsules and inert gas；
3. Contacts protected against contamination. e.g oxidation and corrosion;
4. Magnet arc blowout;
5. Up to 900VDC Cutoff;
6. Compact and lightweight;

yle="width: 726px; height: 30px;" />1. Main contactors for larger hybrid electric vehicles(HEV)plug-in hybrids(PHEV)and full electric vehicles(BEV)；
2. Battery charging systems；
3. Power charging devices；
4. Solar power systems;
5. Could server and uninterrupted power supply(UPS)

Rated voltage	Operate voltage	Release voltage	Rated operating power
VDC	VDC	VDC	W
12	≤8.4	≥1	5.5
24	≤16.8	≥2	5.5

1) Operate voltage and release voltage may vary with environmental temperature.
2) The ripple factor should be under 5%.

Contact arrangement		1H
Initial contact resistance		≤2mΩ(6V DC/20A)
Rated current		50A
Limiting short-time current		200A:10min
		300A:10s
Max.switching current		1000A(320V DC)
Overload break		50 times（150A/450V DC）
Dielectric strength	Between contact and coil	3000V AC
	Between contacts
Insulation resistance	Between contact and coil	Min：1000MΩ（1kV DC）
	Between contacts
Operate time		≤25ms
Bounce time		＜5ms
Release time		≤10ms

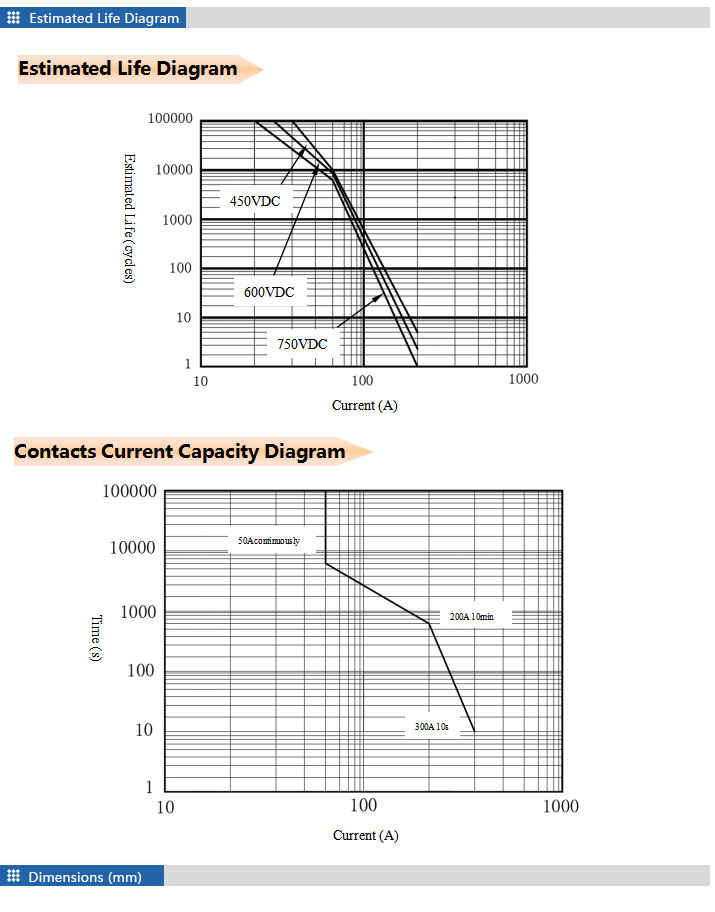

Endurance	Mechanical		2×10⁵ times
	Electrical	450V DC	1×10⁴ times
	（Resistive load）	750V DC	6×10³ times
Mechanical performance	Shock resistance (Functional)		20G
	Shock resistance (Destructive)		50G
	Vibration resistance (Functional)		4G(10～500Hz)
	Vibration resistance (Destructive)		4G(10～500Hz)
Operational condition	Ambient temperature		-40℃～+85℃
	Relative humidity		5%～85% R.H.
Weight			Approx. 220g

1. performance will not be guaranteed.
2. Please add surge protection in parallel if an inductive load (L/R＞1ms）is applied.
3. Contact resistance may increases if a relay is operating without a load.
4. Please connect the terminals correctly.Any wrong connection may cause circuit damage such as malfunction,overheat,and fire.

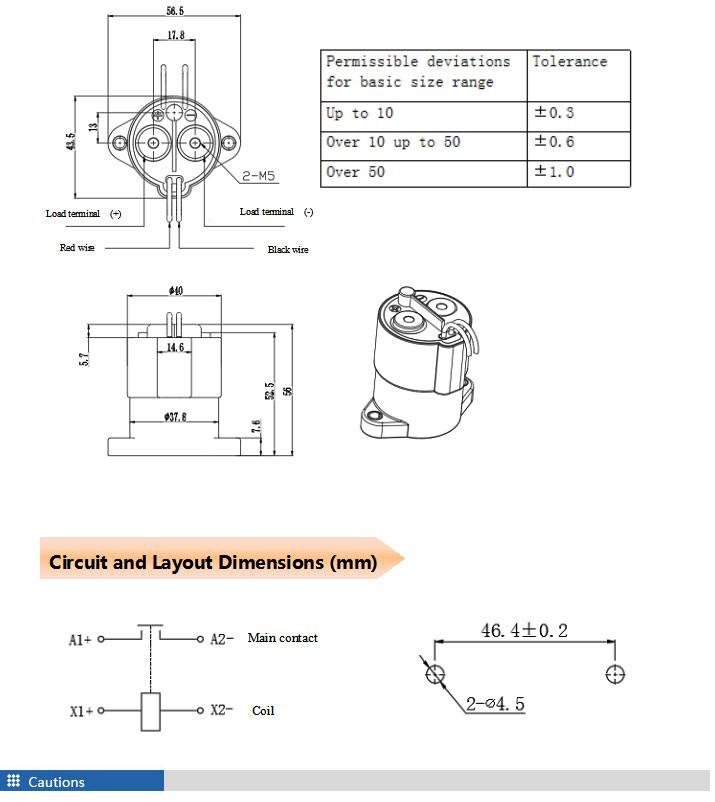

5. Screwing-tightening condition：A) M4 Screw:1.8Nm~2.7Nm（Tightening torque for fixing relay body）B) M5 Screw:3Nm~4Nm（Tightening torque for contact terminal）
6. Use the suitable wires or busbars according to the current.Carrying current:50Amps:diameter of 16mm² (min.).
7. Standard operation condition:temperature-40℃~85℃,humidity5%~85%R.H..
8. If the relay is dropped,it should not be used again.
（Please do not determine specifications based on this document.Contact our sales staff for more information and supports.)
