1. CCC and RoHS compliant;
2. Contacts sealed in ceramic capsules and inert gas;
3. Contacts protected against contamination. e.g oxidation and corrosion;
4. Magnet arc blowout;
5. Up to 900VDC Cutoff;
6. Compact and lightweight;

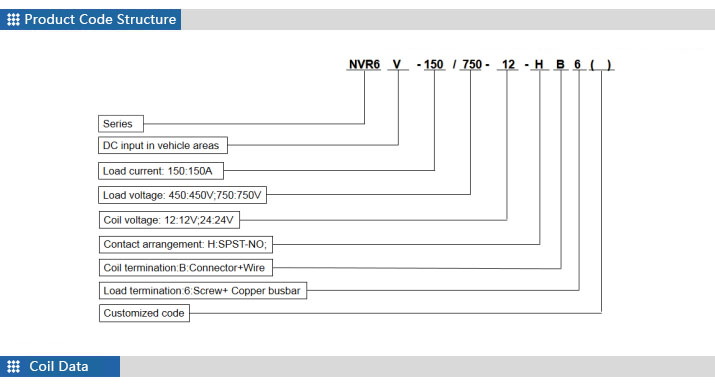

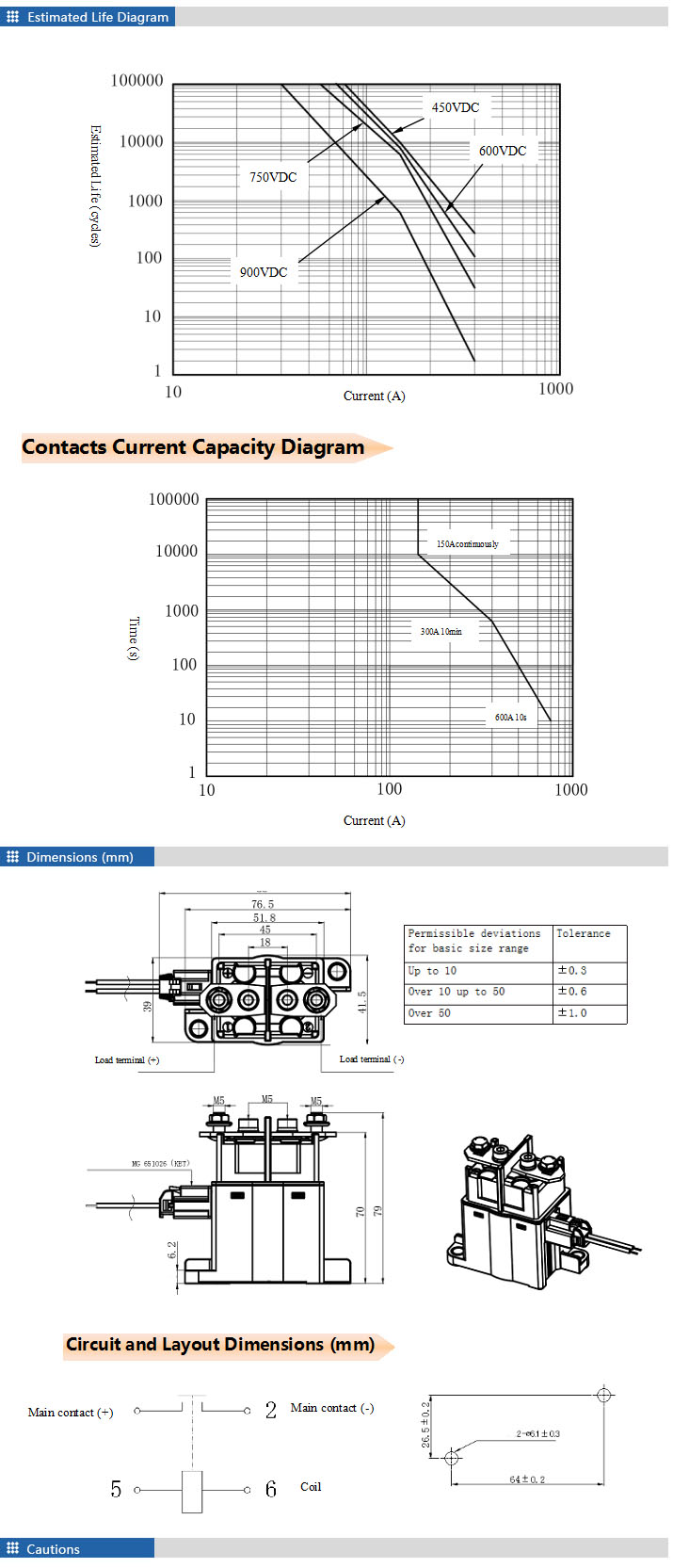

Rated voltage | Operate voltage | Release voltage | Rated operating power |
VDC | VDC | VDC | W |
12 | ≤8.4 | ≥1 | 6 |
24 | ≤16.8 | ≥2 | 6 |
Contact arrangement | 1H | |
Initial contact resistance | ≤5mΩ(6V DC/20A) | |
Rated current | 150A | |
Limiting short-time current | 300A:10min | |
600A:10s | ||
Max.switching current | 1500A(320V DC) | |
Overload break | 300 times(300A/450V DC) | |
Reverse break | 1000 times(150A/200V DC) | |
Dielectric strength | Between contact and coil | 3000V AC |
Between contacts | ||
Insulation resistance | Between contact and coil | Min:1000MΩ(1kV DC) |
Between contacts | ||
Operate time | ≤30ms | |
Bounce time | <5ms | |
Release time | ≤10ms |
Endurance | Mechanical | 2×105 times | |
Electrical | 450V DC | 1×104 times | |
(Resistive load) | 750V DC | 6×103 times | |
Mechanical performance | Shock resistance (Functional) | 20G | |
Shock resistance (Destructive) | 50G | ||
Vibration resistance (Functional) | 4G(10~500Hz) | ||
Vibration resistance (Destructive) | 4G(10~500Hz) | ||
Operational condition | Ambient temperature | -40℃~+85℃ | |
Relative humidity | 5%~85% R.H. | ||
Weight | Approx. 410g |
